Step 1
The top lens detects a moving person in its ultra-wide 130° view.

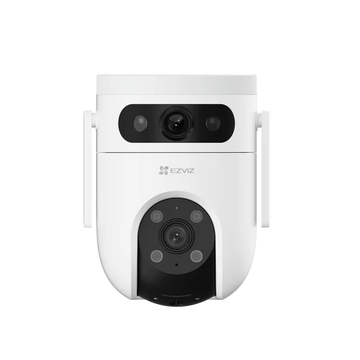

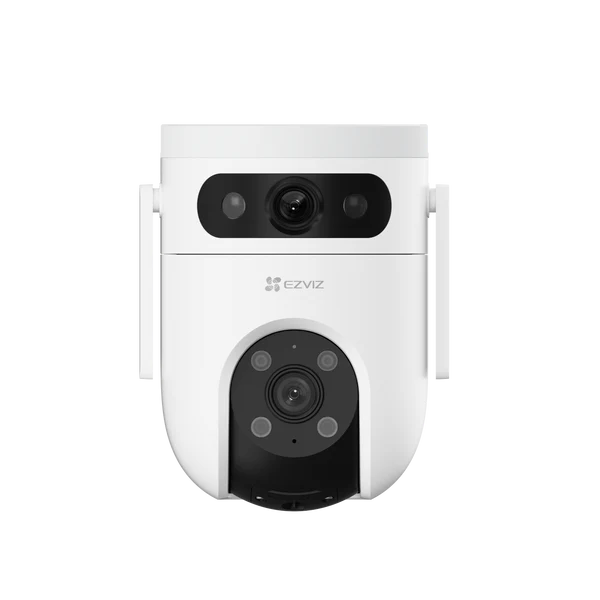

EZVIZ H9c Dual 2K Smart Pan & Tilt Wi-Fi Security Camera
Regular price
Rs.19,500.00
Sale price
Rs.19,500.00
Regular price
Unit price
Save
EZVIZ H9c Dual 2K Smart Pan & Tilt Wi-Fi Security Camera
Regular price
Rs.19,500.00
Sale price
Rs.19,500.00
Regular price
Unit price
Dual view. Auto patrol. Smarter protection.
EZVIZ H9c Dual 2K Smart Pan & Tilt Wi-Fi Security Camera
A dual-lens outdoor camera built for bigger areas. The upper wide-angle lens watches the full scene, while the lower PT lens pans and tilts to follow activity. Get smarter alerts, clearer details, and reliable coverage without installing multiple cameras.
- Dual-Lens 2K View
- Pan 350° • Tilt 80°
- AI Human + Vehicle Detection
- Auto Tracking
- Two-Way Talk
- B/W Night Vision (Up to 30 m)
- H.265 + H.264
- Weatherproof
- microSD Up to 512 GB
- EZVIZ CloudPlay
- Wi-Fi 2.4 GHz + RJ45 LAN
Two lenses, one smarter system
The upper camera captures a wide overview while the lower camera can rotate to lock onto activity. That means fewer blind spots and better detail when something actually happens.
01. Dual-lens coverage
Upper: 2.8mm @ F1.6 (130° diagonal) • Bottom: 6mm @ F1.6 (62° diagonal)
02. Pan & tilt tracking
PT Angle: Pan 350° • Tilt 80° for active follow and wider monitoring.
Smarter alerts that matter
Built-in AI helps separate people and vehicles from random motion so you get fewer useless notifications. Customize alert zones and let the camera track movement automatically.
- Smart Alarm: AI Human / AI Vehicle / Motion Detection
- Auto Tracking: Supports
- Customized Alert Area: Supports
- Preset Locations: Supports
Clear video day & night
Record crisp detail with 2K resolution and efficient H.265 compression. Night vision reaches farther for outdoor spaces.
- Max Resolution: 2304 × 1296
- Frame Rate: Max 15fps (self-adaptive)
- Night Vision: Black & White up to 30 m / 98 ft
- Compression: H.265 / H.264 (H.265 Main Profile)
Storage that fits your setup
Save recordings locally on a microSD card, or use EZVIZ CloudPlay for cloud backup. Choose what works best for your site.
- Local: microSD Card (Up to 512 GB)
- Cloud: EZVIZ CloudPlay storage
microSD card is purchased separately. Cloud service availability may vary by region.
Stable connection options
Use 2.4 GHz Wi-Fi for easy installation, or plug in RJ45 Ethernet for extra stability.
- Wi-Fi: IEEE802.11b/g/n (2.4 GHz)
- Ethernet: RJ45 × 1 (10M / 100M Adaptive)
- Security: WPA-PSK / WPA2-PSK
Specifications
Model: CS-H9c-R100-8H33WKFL
| Camera | |
|---|---|
| Image Sensor | 1/2.7" Progressive Scan CMOS |
| Shutter Speed | Self-adaptive shutter |
| Lens |
Upper Camera: 2.8mm @ F1.6, viewing angle: Diagonal 130°, Horizontal 108°, Vertical 56°
Bottom Camera: 6mm @ F1.6, viewing angle: Diagonal 62°, Horizontal 55°, Vertical 28° |
| PT Angle | Pan: 350° • Tilt: 80° |
| Minimum Illumination | 0.5 Lux @(F1.6, AGC ON), 0 Lux with IR (EZVIZ Lab) |
| Lens Mount | M12 |
| Day & Night | IR-cut filter with auto-switching |
| DNR | 3D DNR |
| WDR | Digital WDR |
| Black & White Night | 30m / 98ft |
| Video & Audio | |
| Max Resolution | 2304 × 1296 |
| Frame Rate | Max: 15fps; Self-Adaptive during network transmission |
| Video Compression | H.265 / H.264 |
| H.265 Type | Main Profile |
| Video Bit Rate | Quad HD, Full HD, Hi Def, Standard. Adaptive bit rate. |
| Audio Bit Rate | Self-Adaptive |
| Network | |
| Wi-Fi Standard | IEEE802.11b, 802.11g, 802.11n |
| Frequency Range | 2.4 GHz ~ 2.4835 GHz |
| Channel Bandwidth | Supports 20MHz |
| Transmission Rate | 11b: 11 Mbps • 11g: 54 Mbps • 11n: 150 Mbps |
| Wi-Fi Pairing | AP paring |
| Protocol | EZVIZ cloud proprietary protocol |
| Interface Protocol | EZVIZ cloud proprietary protocol |
| Wired Network | RJ45 × 1 (10M / 100M Adaptive Ethernet Port) |
| Security | WPA-PSK/WPA2-PSK |
| Functions | |
| Smart Alarm | AI Human Shape Detection / AI Vehicle Shape Detection / Motion Detection |
| Auto Tracking | Supports |
| Customized Alert Area | Supports |
| Two-way Talk | Supports |
| Preset Locations | Supports |
| General Function | Anti-Flicker, Dual-Stream, Heart Beat, Password Protection, Watermark |
| Storage | |
| Local Storage | Supports microSD Card (Up to 512 GB) |
| Cloud Storage | Supports EZVIZ CloudPlay storage |
| General | |
| Operating Conditions | -30°C to 50°C (-22°F to 122°F) Humidity 95% or less (non-condensing) |
| IP Grade | Weatherproof Design |
| Power Supply | DC 12V / 1.5A |
| Power Consumption | MAX. 12W |
| Dimensions | 145 × 116 × 142mm (5.71 × 4.57 × 5.59 inch) |
| Packaging Dimensions | 150 × 150 × 194mm (5.90 × 5.90 × 7.64 inch) |
| Weight | Net: 668 g • With package: 960 g |
Specifications are subject to change without notice.
In the box
- H9c Camera
- Drill Template
- Screw Kit
- Waterproof Kit
- Power Adapter
- Regulatory Information
- Quick Start Guide
Certifications: CE / WEEE / RoHS / REACH
EZVIZ H9c Dual 2K Specifications
Dual-Lens Pan & Tilt Wi-Fi Camera
Model: CS-H9c-R100-8H33WKFL
Camera
Image Sensor
1/2.7" Progressive Scan CMOS
Shutter Speed
Self-adaptive shutter
Lens
Upper Camera: 2.8mm @ F1.6, viewing angle: Diagonal 130°, Horizontal 108°, Vertical 56°
Bottom Camera: 6mm @ F1.6, viewing angle: Diagonal 62°, Horizontal 55°, Vertical 28°
Bottom Camera: 6mm @ F1.6, viewing angle: Diagonal 62°, Horizontal 55°, Vertical 28°
PT Angle
Pan: 350°, Tilt: 80°
Minimum Illumination
0.5 Lux @(F1.6, AGC ON), 0 Lux with IR (*data is obtained from EZVIZ laboratories)
Lens Mount
M12
Day & Night
IR-cut filter with auto-switching
DNR
3D DNR
WDR
Digital WDR
Black & White Night
30m / 98ft
Video & Audio
Max Resolution
2304 × 1296
Frame Rate
Max: 15fps; Self-Adaptive during network transmission
Video Compression
H.265 / H.264
H.265 Type
Main Profile
Video Bit Rate
Quad HD, Full HD, Hi Def, Standard. Adaptive bit rate.
Audio Bit Rate
Self-Adaptive
Network
Wi-Fi Standard
IEEE802.11b, 802.11g, 802.11n
Frequency Range
2.4 GHz ~ 2.4835 GHz
Channel Bandwidth
Supports 20MHz
Transmission Rate
11b: 11 Mbps, 11g: 54 Mbps, 11n: 150 Mbps
Wi-Fi Pairing
AP paring
Protocol
EZVIZ cloud proprietary protocol
Interface Protocol
EZVIZ cloud proprietary protocol
Wired Network
RJ45 × 1 (10M / 100M Adaptive Ethernet Port)
Security
WPA-PSK / WPA2-PSK
Functions
Smart Alarm
AI-Powered Human Shape Detection / AI-Powered Vehicle Shape Detection / Motion Detection
Auto Tracking
Supports
Customized Alert Area
Supports
Two-way Talk
Supports
Preset Locations
Supports
General Function
Anti-Flicker, Dual-Stream, Heart Beat, Password Protection, Watermark
Storage
Local Storage
Supports microSD Card (Up to 512 GB)
Cloud Storage
Supports EZVIZ CloudPlay storage
General
Operating Conditions
-30°C to 50°C (-22°F to 122°F) Humidity 95% or less (non-condensing)
IP Grade
Weatherproof Design
Power Supply
DC 12V / 1.5A
Power Consumption
MAX. 12W
Dimensions
145 × 116 × 142mm (5.71 × 4.57 × 5.59 inch)
Packaging Dimensions
150 × 150 × 194mm (5.90 × 5.90 × 7.64 inch)
Weight
Net Weight: 668 g
With Package: 960 g
With Package: 960 g
In the box
Included
- H9c Camera
- Drill Template
- Screw Kit
- Waterproof Kit
- Power Adapter
- Regulatory Information
- Quick Start Guide
Certifications
Standards
CE / WEEE / RoHS / REACH
Support & Downloads
Need help with setup or installation?
Our team is here to help with installation, EZVIZ app setup, Wi-Fi pairing, troubleshooting, and warranty support. You can also download the official product documents below.
Contact Support
Get fast assistance via call or WhatsApp. We guide you step by step until everything works properly.
Installation guidance
EZVIZ app setup
Wi-Fi pairing
Warranty help
Tip: Keep your camera model number ready for faster support.
Downloads
Download official EZVIZ documents for specifications, installation steps, and daily usage.
Can’t download? Message us on WhatsApp and we’ll send the files directly.
Professional CCTV & Security Features
HD / 4K Cameras
Night Vision
Motion Detection
Mobile App Access
SD / NVR Storage
Warranty & Support
Free delivery on all orders over Rs. 3000 – shop now and save!
Join our glow tribe on Instagram – follow @chamkili_com today!
Influencer or creator? Let’s grow together – join our affiliate squad!
EZVIZ PT Series
H9c Dual 2K & 2K
Dual-Lens Pan & Tilt Wi‑Fi Camera
Automated. All-round. Almighty.
Two intelligent 2K lenses working together to secure larger areas automatically. The H9c Dual tracks movement, patrols key zones, and alerts you to real activity—so you get multi-camera level protection with one smart device.
AI Human/Vehicle
360° Coverage
Color Night Vision
Two-Way Talk
Weatherproof
Official warranty
Fast installation support
Secure cloud options
Automated. All-round. Almighty.
The dual-lens H9c Dual 2K brings next-level security automation. Two cameras work interactively to cover larger areas, track activity, and patrol key zones automatically.
2K & 2K Dual Lenses
Co-Detection for Auto Smart Tracking
One-Tap Control for Linked View Change
Two Patrol Modes for Auto-Security
AI-Powered Human / Vehicle Shape Detection
360° Panoramic Coverage
Color Night Vision
Two-Way Talk
Active Defense with Siren & Strobe Light
Weatherproof Design
Enhanced Dual Wi‑Fi Antennas
H.265 Video Technology
Smart Integration with Google Assistant & Amazon Alexa
Supports microSD (Up to 512 GB) & EZVIZ CloudPlay Storage
Dual lenses. Double security.
With EZVIZ’s unique dual-lens technology, the H9c provides protection that goes beyond ordinary cameras. A 2K wide-angle lens sits above a 2K telephoto pan-and-tilt lens. They work independently or together for smarter coverage.
2K Wide-angle Lens
Manually-adjustable 240° horizontal rotation and 15° preset fixed tilt angle for glare-free viewing.
2K Telephoto Lens
Motorized pan & tilt for 360° view.
See More
Doubled views, clearer details
Wide lens
PT lens
Wide lens
PT lens
Function Smarter
Interlinked co-detection, view change, and more
Worry Less
Easy, automated area patrol
Next-level detection, unparalleled protection
The H9c is equipped with dual-lens, co-enabled detection technology to safeguard even the most complex environments in a way that is tailored to your needs. Use these advanced features any time—without committing to a subscription plan.
AI-Powered Human / Vehicle
Shape Detection (Available on Both Lenses)
PT Lens Auto-Tracking
(On Human Movements)
Co-Detection
for Interlinked Lens Auto-Actions
Adjustable
Detection Sensitivity
FREE
No Subscription Required
Smarter alerts with upgraded vehicle detection
It reduces alerts caused by falling leaves or flying insects, and informs you when someone parks in your property area without permission.
Face two directions, but follow the same activity
Even if the two lenses are set on opposite viewing angles to secure two different areas, they can complete a single smart tracking task through teamwork. When a person is detected by the upper lens, the PT lens automatically rotates to focus on the subject and records the whole activity.
Step 2
The bottom lens rotates and follows the moving person.
See much more than you can imagine
A bigger space needs a wider view. That’s where the H9c 2K comes in handy. It can pan and tilt to take in a 360-degree field-of-view, and render details in 2K resolution to capture crucial moments clearly.
F/2.8mm Wide-angle View
F/6mm Close-up View
F/6mm Digital Zoom
Click to check, with both wide and close-up views
Understand the whole picture while paying attention to the important details, by using the EZVIZ App. You can tap the area of interest on the wide-angle viewing box, so a close-up view shows on the side at the same time.
Or, let the H9c 2K patrol smartly, so you don’t have to
On set time intervals, the lower lens can complete rotational check-ups to eliminate blind spots. You can customize patrol routes for tailored focuses, or simply ask it to complete a full-circle spin.
Designed to make protection last all night
Impressive, far-reaching color night vision¹, with 4 built-in spotlights
Three useful night vision modes will suit any need
Versatile setups for almost any location
Install the H9c 2K at the best spot you’d find to eliminate blind spots.
More convenience for various needs
Please leave my property!
High-quality audio to respond & warn
Easily respond to any visitor by simply using your phone to speak remotely. The camera can also auto-play a recorded voice message when a motion is detected.
Active Defense
Active defense to deter & safeguard
Upon detection of intruders, the camera will set off a loud siren and flash dazzling spotlights to let the uninvited strangers know they have been detected.
Stable Wi-Fi
Powerful antennas, stable connection
It boosts up to 220 m Wi-Fi coverage thanks to its high-performance dual antennas. It also offers wired options for further convenience.
All-Weather
A neat design against all weathers
The H9c 2K has a compact design, and is weatherproof to deliver long-standing performance, even in harsh weather conditions.
Alexa, show me the yard.
Smart integration for hands-free control
The camera supports easy integration to your existing voice assistants. You can pull up the video feed by simply saying Alexa or Hey Google.
H.265
H.265 for enhanced video experience
The H.265 creates a smoother viewing experience while only using about 50% of the data storage space required by cameras with H.264.
Large, safe storage options that you can trust
You can secure your recorded videos on a local microSD card of up to 512 GB, or subscribe to EZVIZ CloudPlay for fully-encrypted cloud storage.
Supports MicroSD Card
Supports EZVIZ CloudPlay Storage
We do our best to protect data
and privacy
Your footage and personal data are protected with strong encryption standards, and EZVIZ follows recognized security and privacy certifications.
EZVIZ has been awarded by DNV for information security (ISO/IEC 27001:2013), personal data protection (ISO/IEC 27701:2019), cloud security (CSA STAR) and more.
EZVIZ App
One app for everyday, everything
EZVIZ App will always connect you to your home, even if you are far away from it.
- •Instant Alert
- ⌁Remote Control
- 8×Live View with 8x Zoom
- ⧉Video History
- ⌂Connected Home
EZVIZ App interface images are for illustrative purposes only.
Available on Phone / Pad / TV
¹ If the two lenses point in the same direction, the maximum color night vision range is 40 meters. If this is not the case, the maximum distance is 30 meters, based on EZVIZ Lab test results under standard conditions.
² The spotlights will not flash when the color night vision mode is enabled.
³ Data from EZVIZ Lab’s test results under standard conditions. The video compression efficiency will vary with the frequency and complexity of the activity captured, as well as other environmental factors.
⁴ Google Assistant is not available in certain languages and countries.
⁵ A local storage card must be purchased separately. Cloud storage service is only available in certain markets. Please verify the availability before making any purchase.
⁶ Data from EZVIZ Lab’s test results in open environment. Will vary with the Wi-Fi frequency, camera location, the transfer technology, and other environmental factors.
